17.3-31 GHz SP4T PIN Diode Switch

Model: SP4TR-17331092
SP4T RF Switch
31 GHz, 2.92mm-Female SP4T PIN Diode Switch;
Reflective;
Low Insertion Loss 5dB;
Operating Temperature: -55 to +85℃

GaN CMOS power switch delivers 40A to RF PAs

Specialist distributor RFMW has the 365CT000, 40A pulsed switch from Xsystor, Inc., that offers easy integration of GaN amplifiers in high speed, pulsed power systems.
RF Switch
These CMOS, complementary MOSFET switches have clocked speeds of under 200nsec for rise and fall times. Allowing source and drain voltages from 28 to 80V, the Xsystor switch is compatible with standard and high voltage GaN amplifiers and transistors. Operating temperature is specified for -40 to 85C but will withstand 175C with derated voltage and current capacity. The 365CT000 comes in a 23 x 27 mm, castellated SMT package allowing it to be placed on or near the voltage supply line's RF choke. Xsystor also offers inverting and non-inverting voltage controllers and sequencers for GaN implementations.

Checkpoint introduces dual integrated RF-RFID labels

Checkpoint Systems, Inc., a leading global supplier of merchandise availability solutions for the retail industry,has announced patent-pending dual RF-RFID labels that incorporate UCODE 7 chips from NXP.

The UNO Series helps retailers protect health/beauty/cosmetics categories, hard goods and apparel merchandise using their current electronic article surveillance (EAS) infrastructures -- while at the same time delivering radio-frequency identification (RFID) benefits in inventory cycle counting and merchandise management for omni-channel fulfillment and auto replenishment.

The UNO Series with UCODE 7 chip requires less power for increased read and write sensitivity -- providing faster performance in reading and encoding. It also provides greater broadband width, which enables improved functionality internationally, where the frequencies of readers’ RF signals vary from region to region. This means that regardless of the point of manufacture or destination location, the UCODE 7 will perform reliably.

UNO labels were specifically developed to provide a more affordable upgrade path, allowing retailers currently utilizing EAS protection to transition to RFID by providing the option to apply it to certain merchandise categories and still leverage the EAS infrastructure they already have at stores.

In fact, the first Checkpoint health & beauty retail customer has already begun implementing UNO labels with great success improving its inventory visibility and reducing out-of-stocks. This retailer stated that because of the accurate inventory visibility with this new technology, it has now reduced its inventory counts and still improved out-of-stock metrics. A majority of Checkpoint EAS pedestals are already easily upgradeable with an available RFID kit.

“Most retailers have already begun moving or are already planning for RFID implementations in the near future,” said Uwe Sydon, Senior Vice President of Innovation, Checkpoint. “But many are wary of the migration path. UNO can be used immediately to simultaneously support loss prevention and merchandise visibility rather than having to switch labels and then upgrade later. This provides a straightforward, cost-effective path to RFID, eliminating the time and costs associated with starting from scratch.”

“With Checkpoint Systems leadership in EAS we see this as an excellent strategy and opportunity to drive increased RAIN RFID adoption throughout the global retail space,” said Suresh Palliparambil, Director of Sales, NXP Semiconductors. “This unique approach of combining the technologies in UNO resolves a retailer’s challenges of loss prevention and inventory management with one integrated solution, utilizing the EAS/RFID system expertise from Checkpoint and leading IC technology from NXP.”

UNO comes in both rectangle and square form factors. Its design incorporates the latest technology for EAS -- Checkpoint’s Micro EP platform -- and the most updated UHF design techniques with solid performance in a small form factor. It works with a variety of pedestals and the Evolve RFID EAS Overhead Solution.

UNO labels are available immediately.

Tronics: partenariat avec Airbus pour les switches RF-MEMS.

Tronics grimpe de 4,6% après l'annonce d'un partenariat entre le fabricant de nano et microsystèmes et Airbus Group pour le développement de switches et circuits RF capacitifs.

Tronics grimpe de 4,6% après l'annonce d'un partenariat entre le fabricant de nano et microsystèmes et Airbus Group pour le développement de switches et circuits RF capacitifs à base de MEMS.

Dans le cadre de cet accord, Tronics accède au portefeuille de brevets du constructeur aéronautique à travers une licence exclusive pour le développement d'une plateforme technologique de rupture pour switches RF-MEMS.

Cette plateforme servira les divisions d'Airbus Group, ainsi que toute autre compagnie désirant fabriquer des switches nPnT ou des circuits sur-mesure, tels que les filtres accordables, les matrices de switch et les lignes de délai commutées.

'Les RF-MEMS représentent une technologie prometteuse pour un large champ d'applications industrielles telles que le test et l'instrumentation, les infrastructures de communication 5G, les communications satellite et les systèmes de radar', précise la société.

Tronics collabore avec Airbus depuis 2012 pour transférer leur design de switch sur le site de Grenoble et intégrer les exigences de haut niveau dans ses solutions de boîtier hermétique à l'échelle de la tranche de silicium (WLP) avec des vias traversants en métal (TSVs).

FlexLink L-Band Switch Matrix Series Rolls Out From RF Design

RF-Design successfully has launched their new FlexLink S7 L-Band Switch Matrix series.
RF Switch
This new stand-alone and small sized matrix family features the unit variants FlexLink S7-8816 supporting 8:8, field expandable to 8:16 inputs/outputs via license-key activation and the FlexLink S7-1616 available with 16:16 inputs/outputs. RF-Design has more than 260 switch matrices of their FlexLink series in operation with teleports, satellite Earth stations, broadcasters and cable/IPTV headend facilities around the globe. FlexLink S7 will experience growing demand as smaller sized switch matrices—especially from cable/IPTV headend operations, broadcasters and DSNG´s —are incorporated into various distribution solutions —FlexLink S7 units are also a perfect fit for teleports and satellite Earth stations.

The FlexLink S7 units come in a space saving 1RU/19” rack-mount design, are available with 50/75Ohm connectors as well as can being equipped with optical inputs e.g. for integration into existing RF-over-Fiber infrastructures or for combining them with RF-Design´s FiberLink RF-over-Fiber series. The FlexLink S7 units support some very advantageous features such as variable gain-adjustment, slope-equalization, RF power monitoring, switchable LNB-supply, 10MHz reference feet and 1:1 redundant hot-swappable, dual power-supplies. The FlexLink S7 units can be configured locally via their front-side LC-Display/keypads and remotely via their Ethernet interface

Last, but not least, the units of RF-Design´s FlexLink S7 series offer reliable RF performance, especially at isolation, linearity and frequency response. The combination of its unique features, flexibility and excellent RF characteristics allow optimized signal transmission at the highest quality level and makes these units a perfect fit for a variety of applications in broadcast, cable and satellite RF distribution architectures.

RF-Design´s Matrix series “FlexLink” incorporates their new stand-alone FlexLink S7 (8:8/8:16 / 16:16), the stand-alone FlexLink S2A (8:24) as well as their scalable/modular type system FlexLink-K7-Pro (available in sizes of 8:8 to up to 256:256). With their overall Matrix series “FlexLink” RF-Design is able to address the various requirements of customers that require reliable, flexible and high quality L-Band switching/routing solutions for their RF distribution architectures.

Airbus Group and Tronics partner on RF-MEMS switches

Tronics, a designer and manufacturer of innovative nano and microsystems, and Airbus Group, a global leader in aeronautics, space and related services, today announced their partnership for the development of capacitive MEMS-based RF switches and circuits. Under this agreement, Tronics accesses Airbus Group's patent portfolio through an exclusive license for the development of a breakthrough technology platform for RF-MEMS switches. This platform will serve Airbus Group business units, as well as any other company wishing to manufacture nPnT switches or custom circuits, such as tunable filters, switch matrices and switched delay lines.

RF-MEMS constitute a promising technology for a large array of industrial applications such as test and instrumentation, 5th generation (5G) communication infrastructures, satellite communications and radar systems. The capacitive RF-MEMS technology platform developed by Tronics and Airbus Group Innovations, the corporate research and technology network, will enable the manufacturing of higher frequency switches and circuits, offering high linearity and wide band coverage with high power handling capabilities. This approach enables innovative, miniaturized, lightweight, and more efficient system architectures, improving sensing capabilities for secure and reliable communications.

Tronics has been collaborating with Airbus Group since 2012 to transfer their switch design to its Grenoble facility and integrate the high level of requirements into its hermetic wafer level packaging (WLP) solutions with integrated metal Through Silicon Vias (TSVs). This close collaboration has clearly demonstrated the feasibility and functionality of the integrated devices, and now enters its second phase in order to further improve the performances and maturity of the technology.

"We are pleased to be partnering with Tronics to jointly advance our technology and industrialize the RF-MEMS platform. Their agility, technical expertise and access to the market are key success factors for our project", said Otto Gies, VP Innovation Nursery & Start-ups of Airbus Group. "Various products of our company will benefit from the availability of this new advanced technology."

"We are delighted to strengthen our long-term partnership with a world-class leader like the Airbus Group", added Pascal Langlois, Chief Executive Officer of Tronics. "The very promising results obtained over the years reinforce our strategic positioning and our capability to provide technology platforms in line with the specific requirements of key players in high growth markets."

Pasternack Debuts Electromechanical Switches

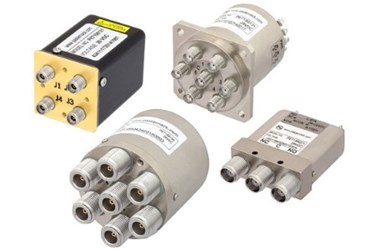

1 Million Life Cycle Electromechanical Switches Covering Broad Frequencies from DC to 46 GHz Released by Pasternack
Electromechanical Switches
Irvine, CA /PRNewswire/ -- Pasternack, a leading manufacturer and supplier of RF, microwave and millimeter wave products, introduces a large portfolio of in-stock general purpose multi-market coaxial packaged electromechanical switches for RF, microwave and millimeter wave applications. These new electromechanical switches are uniquely qualified for use in numerous applications including military communications, radar, Commercial and military aviation, SATCOM, test & instrumentation, medical equipment and others.

Pasternack's newest electromechanical switches consist of 134 connectorized designs that are guaranteed for 1 million life cycles. These new general purpose switches complement Pasternack's existing family of 2M to 10M life cycle High-Rel Electromechanical Relay Switches, making the company's in-stock RF switch portfolio the largest in the industry. These RF relay switches are available in a variety of different connector options including SMA, N Type, TNC and 2.92mm and are offered in popular configurations such SPDT, DPDT, SP4T, SP6T, SP10T and Transfer. Additional features available on specific models include Latching Actuators, Failsafe Actuators, Indicators, TTL Controls, Terminations, Pulse Latching and Hot Switching.

The new general purpose electromechanical switches from Pasternack cover frequency ranges from DC to 46 GHz and have power ratings ranging from 10 Watts to 275 Watts. These RF switches also boast high isolation up to 80 dB, switching speeds ranging from 15 ms to 50 ms and low insertion loss ranging 0.2 dB to 0.6 dB. All materials and finishes are in accordance with applicable MIL standards.

"Pasternack offers designers a comprehensive selection of general purpose electromechanical switch designs for multi-market applications in popular configurations all guaranteed to 1M life cycles," says Tim Galla, Active Components Product Manager at Pasternack. "These switches are the perfect complement to our existing lines of high reliability relay switches which have guaranteed performance up to 10M life cycles."

Pasternack's new family of 134 general purpose electromechanical switches are in-stock and available to ship today.

Quintech XTREME 256 Matrix Switch

Quintech Electronics & Communications, Inc. and its wholly owned subsidiary DEV Systemtechnik GmbH & Co. KG invite broadcast industry participants to IBC 2015, September 11th through the 15th in Amsterdam at the RAI Convention Center, Stand 1.B31 Hall 1. The company will be displaying its latest line of L-band Matrix Switches and RF over Fiber products including: XTREME 256, ARCHIMEDES, NEXUS, and the 82, the company’s latest 8x8 Matrix Switch in 1 RU; as well as its industry leading Ka Band Diversity Site DWDM solutions.

According to Dan Prushnok, CEO of Quintech Electronics & Communications, Inc., “The success of all of these products over the last year has been extraordinary. Particularly, we have seen the rapid adoption of large configurations such as 128x256 and 96x640. These systems are shipping to commercial and government customers worldwide. The XTREME 256 configurations provide ‘Expansion by Reduction,’ and greatly diminish plant footprint by at least 75%, while providing power savings of up to 85%.”

The XTREME 256 asymmetrical architecture (patent pending) provides for any configuration of inputs or outputs adding up to 256 in a single chassis. For example: 64x192, 96x160 or 48x208.

These XTREME 256 features and benefits are being quickly adopted by major broadcasters in both upgrade and green-field installations.

Quintech and DEV invite media and industry participants to see the demonstrations of its next generation RF technologies at IBC 2015, Stand 1.B31 Hall 1.

2-4GHz SMA PIN SPST RF Switch _ Absorptive

SPSTA-020040S-RF Switch
SPSTA-020040S-RF Switch Components: Specifications
Switch Type.: Absorptive
Freq. Range: 2-4GHz
Insertion Loss: 1.0dB
VSWR: 1.5
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V;-5V/mA
Connector Type: SMA-JACK(F)
Operating Temp.: -40 to +70
Storage Temp.: -55 to +85
Dimension: 24*20*10.2mm
Weight: TBDg

2-20GHz SMA PIN SP8T RF Switch _ Reflective

SP8TR-020200S-RF Switch Components
SP8TR-020200S-RF Switch Components: Specifications
Switch Type.: Reflective
Freq. Range: 2-20GHz
Insertion Loss: 3.5dB
VSWR: 2.0
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V;-5V/mA
Connector Type: SMA-JACK(F)
Operating Temp.: -40 to +70
Storage Temp.: -55 to +85
Dimension: 37*37*12mm
Weight: TBDg2-20GHz SMA PIN SP8T RF Switch _ Reflective

1-20GHz SMA PIN SPST RF Switch _ Absorptive

SPSTA-010200S-RF Switch
SPSTA-010200S-RF Switch Components: Specifications
Switch Type.: Absorptive
Freq. Range: 1-20GHz
Insertion Loss: 3.0dB
VSWR: 2.0
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V;-5V/mA
Connector Type: SMA-JACK(F)
Operating Temp. : -40 to +70
Storage Temp. : -55 to +85
Dimension: 24*20*10.2mm
Weight: TBDg

0.8-6GHz SMA PIN SP8T RF Switch _ Absorptive

SP8TA-008060S-RF Switch Components
SP8TA-008060S-RF Switch Components: Specifications
Switch Type.: Absorptive
Freq. Range: 0.8-6GHz
Insertion Loss: 2.8dB
VSWR: 1.5
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V;-5V/mA
Connector Type: SMA-JACK(F)
Operating Temp. : -40 to +70
Storage Temp. : -55 to +85
Dimension: 37*37*12mm
Weight: TBDg

1-18GHz SMA PIN SP6T RF Switch _ Reflective

SP6TR-010180S-RF Switch Components
SP6TR-010180S-RF Switch Components: Specifications
Switch Type.: Reflective
Freq. Range: 1-18Ghz
Insertion Loss: 3.0dB
VSWR: 2.0
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V/-5VmA
Connector Type: SMA-Jack(F)
Operating Temp.: -40 to +70
Storage Temp.: -55 to +85
Dimension: 78*24*10.2mm
Weight: TBDg

6-12GHz SMA PIN SP4T RF Switch _ Reflective

SP4TR-060120S-RF Switch Components
SP4TR-060120S-RF Switch Components: Specifications
Switch Type.: Reflective
Freq. Range: 6-12Ghz
Insertion Loss: 2.0dB
VSWR: 1.5
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V/-5VmA
Connector Type: SMA-Jack(F)
Operating Temp. : -40 to +70
Storage Temp. : -55 to +85
Dimension: 52*20*10.2mm
Weight: TBDg

1-18GHz SMA PIN SP4T RF Switch _ Absorptive

SP4TA-010180S-RF Switch Components
SP4TA-010180S-RF Switch Components: Specifications
Switch Type.: Absorptive
Freq. Range: 1-18GHz
Insertion Loss: 3.0dB
VSWR: 2.0
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V;-5V/mA
Connector Type: SMA-JACK(F)
Operating Temp. : -40 to +70
Storage Temp. : -55 to +85
Dimension: 52*20*10.2mm
Weight: TBDg

0.001-4.5GHz SMA PIN SPDT RF Switch _ Reflective

SPDTR-1M045S-RF Switch Components
SPDTR-1M045S-RF Switch Components: Specifications
Switch Type.: Reflective
Freq. Range: 0.001-4.5GHz
Insertion Loss: 1.2dB
VSWR: 2.0
Isolator: 80dB
Switching: 100ns
CW Power: 1W
Power Supply: +5V/-5VmA
Connector Type: SMA-Jack(F)
Operating Temp. : -40 to +70
Storage Temp. : -55 to +85
Dimension: 28*18*10.2mm
Weight: TBDg
